The PT310X has a large 310×255mm capacity.With the convenience of single handed table lift(no need to remove the fence),switching from surface planning to thicknessing cannot be easier.
This versatile machine features an extra large aluminum extruded fence with centered controls and can locking for quick adjustments.
It's a great machine to choose for serious woodworker and the busy trade workshop.
Centered controls and cam locking fence for quick adjustments.

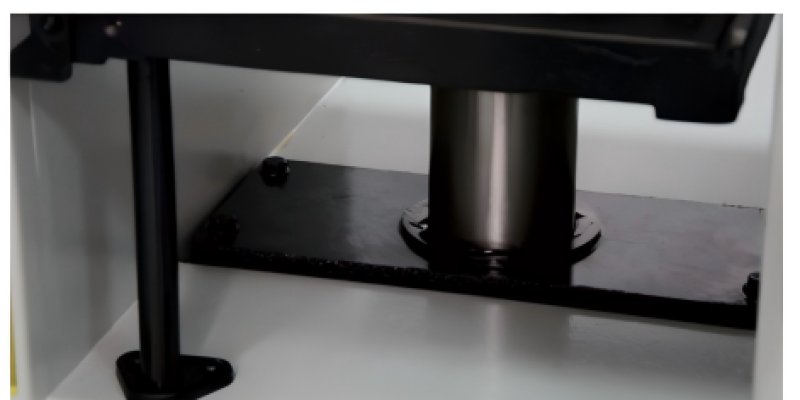

Sturdy central column for superior stability and easy rise and fall adjustment.

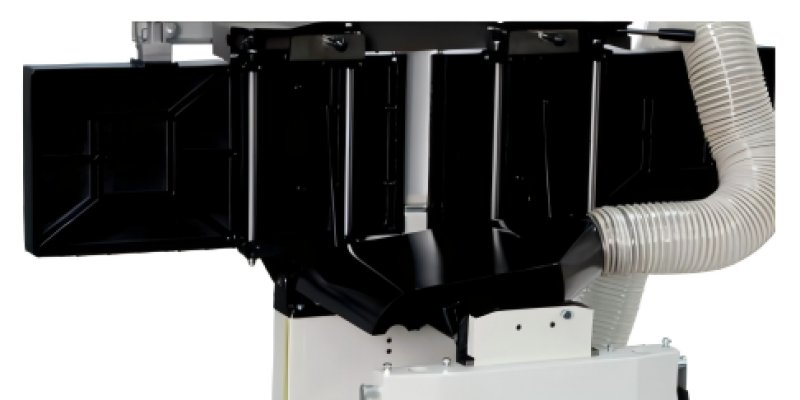

Built-in dust chute capable of handling both planing and thicknessing operations.
Feed Speed | 7m/min |
Cutterblock Speed | 5300rpm |
Cutterblock Diameter | 70mm |
Max Thicknesser Height | 4-225mm |
Max Thicknesser Width | 310mm |
Min Length of Workpiece | 160mm |
Max Depth of Cut | 3mm |
Knives Q'ty | 3pcs |
Knife Size | 310×25×3mm |
Over Length of Planer Tables | 1409mm |
Thickness Table Size | 545×307mm |
Extractor Port Dia. | 100mm |
Cutting Motor Output ·1*230V ·3*400V |
2.2kW S1 2.2kW S1 |
Net/Gross Weight | 175/217 kgs |
Package Size | 1480×580×1120 mm |
Container LoadQ'ty | 32pcs/20’ |
