PT260A is a good machine for hobby and home workshop where need reliable performance from a solid and durable machine,but doesn't have the space or budget for a larger industrial machine.
Standard features such as 6500rpm cutterblock,deep extruded aluminum fence adjustable for angle,full width cutter guard,anti-kickback fingers on the thicknesser feed,built-in dust hood for extracting from above and below the table.
4 trapezoidal threads spindle guarantee accurate adjustment.

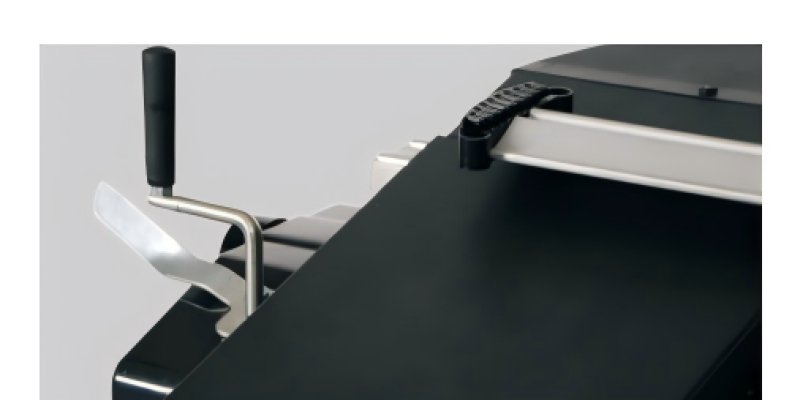

Deep extruded aluminium fence adjustable for angle.
Built-in dust chute capable of handling both planing and thicknessing operations.
Feed Speed | 5m/min |
Cutterblock Speed | 6500rpm |
Cutterblock Diameter | 63mm |
Max Thicknesser Height | 8-160mm |
Max Thicknesser Width | 260mm |
Min Length of Workpiece | 130mm |
Max Depth of Cut | 3mm |
Knives Q'ty | 2pcs |
Knife Size | 260×20×3mm |
Over Length of Planer Tables | 1030mm |
Thickness Table Size | 260×400mm |
Extractor Port Dia. | 100mm |
Cutting Motor Output | 1*230V 1.5kW S1 |
Net/Gross Weight | 66/73kgs |
Package Size | 710×570×560mm |
Container LoadQ'ty | 124pcs/20’ |
