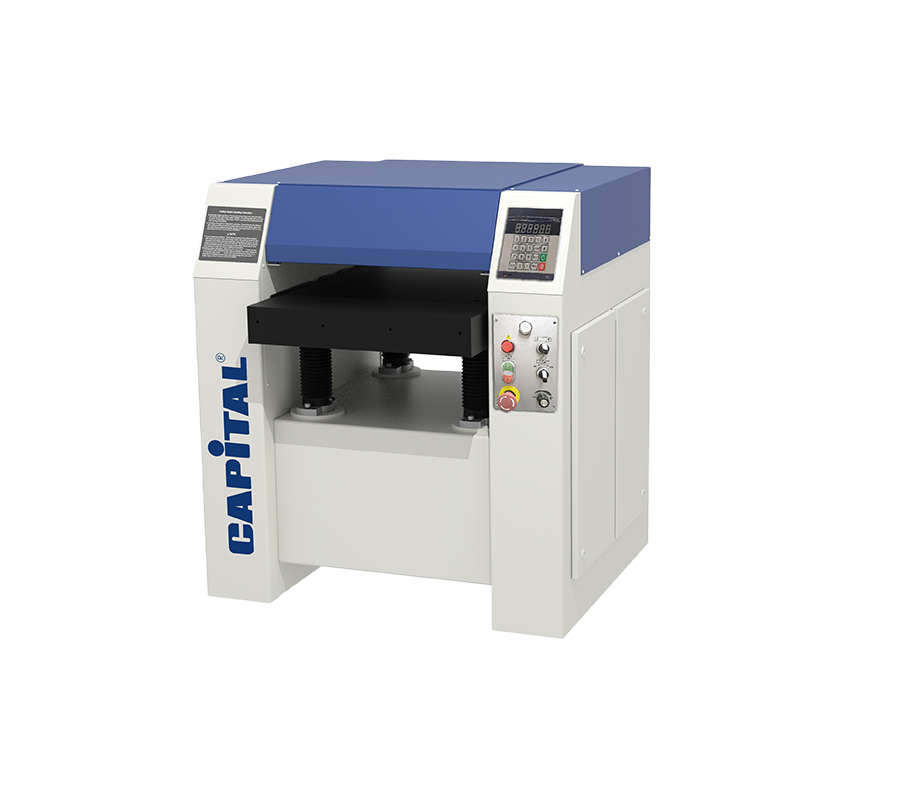

TH630A is a fully automatic, single-sided thickness planer with top-tier configuration. It features a four-column table lifting support system and segmented feed rollers, allowing simultaneous planing of wood pieces with different thicknesses. The spring-loaded cast iron pressure plate, combined with a dual outfeed roller design, ensures excellent planing flatness—making it the smart choice for efficient industrial production.
Maximum Planing Width | 630mm |
Maximum Planing Depth | 8mm |
Minimum Planing Length | 280mm |
Planing Material Thickness | 5-300mm |
Blade Diameter | 117mm |
Blade Speed | 5500rpm |
Dust Outlet Diameter | 150mm |
Main Motor Power | 5KW s1 |
Lifting Motor Power | 0.25KW |
Feeding Motor Power | 0.55KW |
Feed Rate | 4-16m/min |
Voltage | 380-415V/3PH |
Table Dimensions | 1050X630mm |
Net Weight | 667kg |
Package Weight | 742KG |
Package Size | 1220X1150X1350mm |
