WL2032VS ELECTRONIC VARIABLE SPEED 20×32"WOOD LATHE WITH TAIWANDELTA INVERTER+MAGNETIC CONTROL BOX M33×3.5-DIN800

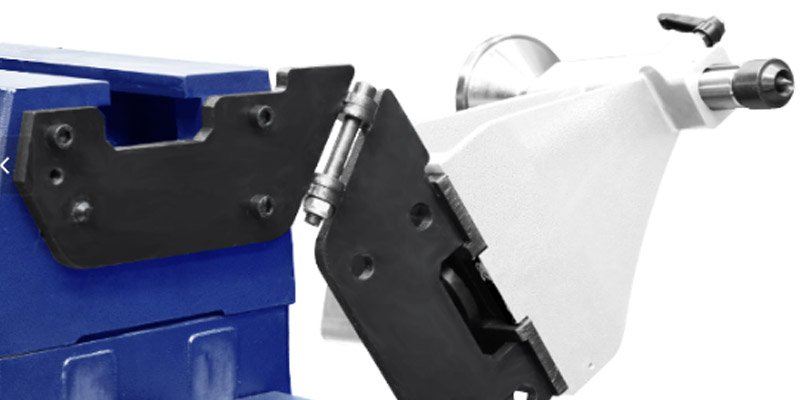

Swing tailstock.
Tool box on tailstock.
Knockout Rod.
Tool Holder.
Voltage/Frequency | 220-240V/50Hz 1PH 220V/60Hz 3PH |
Swing Over Bed Diameter | 508mm |
Distance Between Centres | 813mm |
Spindle Speeds | 0-1300rpm(Low) 0-3550rpm (High) |
Spindle and Sleeve Taper | MT2 |
Spindle Thread ·Standard |
M33x3.5 M30x3.5 1"×8 |
Sleeve Adjustment | 110mm |
Indexing Position | 36 |
Headstock swivelling angle | 0°,45°,90°,135°,180° |
Tool Rest | 14" |
Face Plate | 5.7" |
Spindle Rotation | Forward(C-Clockwise)& Reverse (Clockwise) |
Motor Power Output | 1500W/2HP |
Net/Gross Weight | 230/274kgs |
Package Size | 1396×626×628mm |
Container Load Q'ty | 39pcs/20' 78pcs/40GP,88pcs/40HC |
