Easy speed change,solid headstock and lathe bed construction,Extra 550mm optional bed extension which enables total working length to 1,000mm.
Five speeds to adapt to a variety of spinning scenarios.

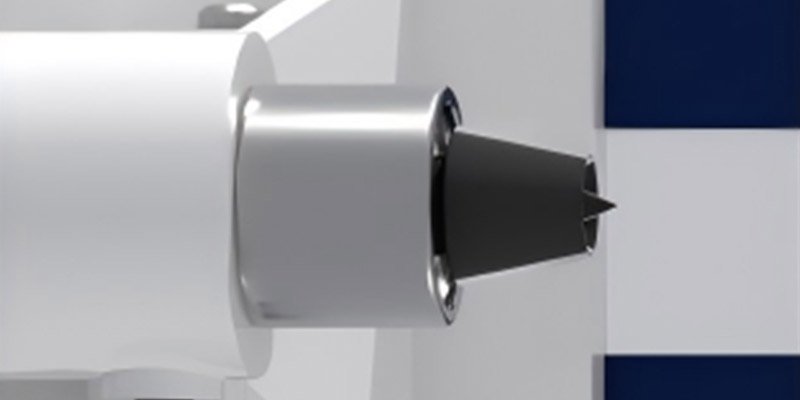

Self ejecting tail stock.
Easy access speed change.
Ability to add multiple extensions.
Voltage/Frequency | 230V/50Hz 120V/60Hz |
Swing Over Bed Diameter | 254mm |
Distance Between Centres | 457mm |
Spindle Speeds | 5(650-2800)rpm |
Spindle and Sleeve Taper | MT2 |
Spindle Thread ·Standard |
M33x3.5 M30x3.5 1"×8 |
Sleeve Adjustment | 44.5mm |
Tool Rest ·Standard | 6" 4" 8" |
Face Plate ·Standard |
3" 6" |
Motor Power Output | 1*230V1/3HP S1 |
Net/Gross Weight | 34/36kgs |
Package Size | 840x430x300mm |
Container Load Q'ty | 240pcs/20’ |
