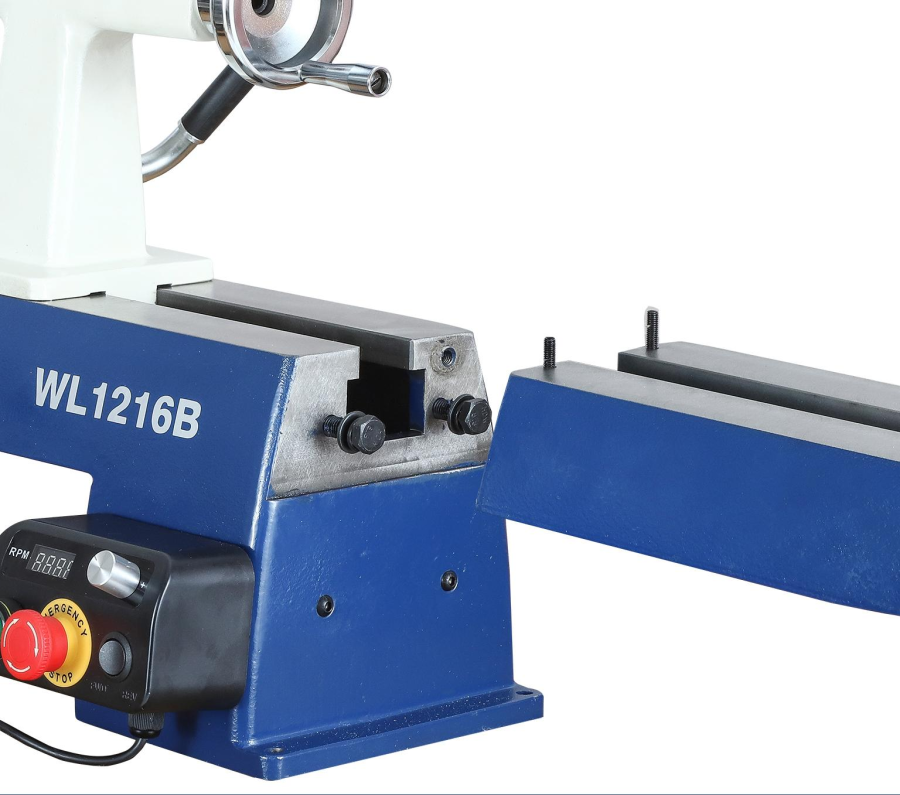

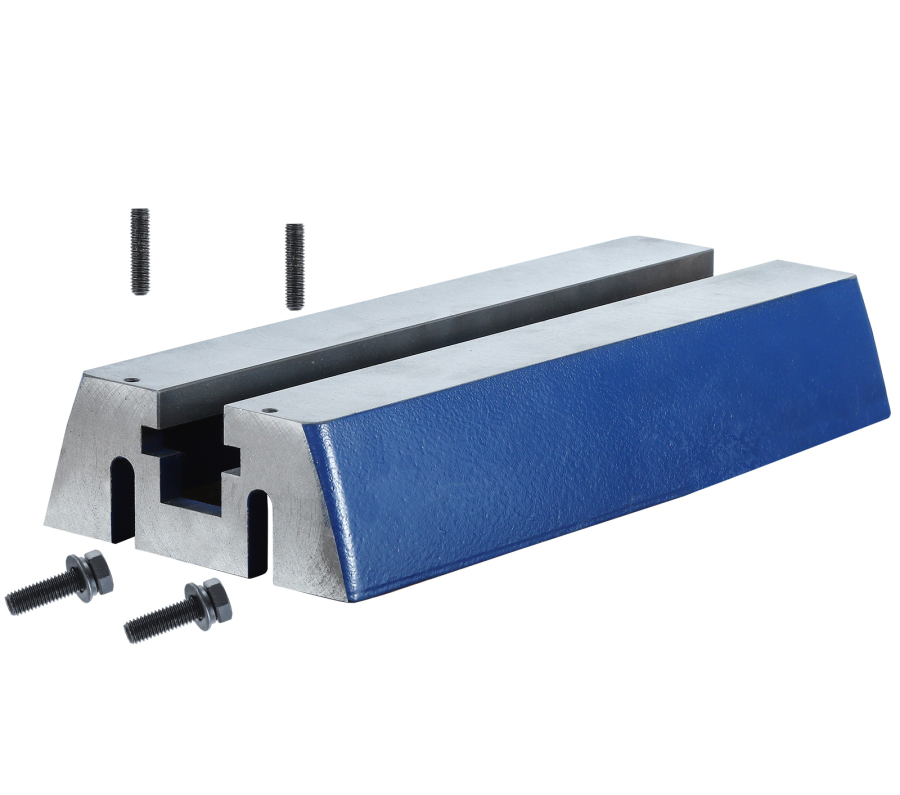

This new lathe sets all the standards for a mini variable speed lathe,and is the best value on the market.Solid construction,superb finish and the convenience of electronic variable speed,perfect for beginners or professionals.Featuring 1HP power,a remote(magnetized)control box and a 200mm premium tool rest,this lathe is fantastic value.The optional bed extension allows the turner to produce chair or table legs as well as traditional bowls and smaller spindle pieces.In addition,mounted at he head stock end,the extension increases the swing to 380mm.
Easy access to the pulleys to allow a quick change across the speed range.
Powerful 1hp motor provides pleanty of power in this mini lathe.Quality"soft grip" lever releases the motor for a belt change.
Heavy duty banjo with premium solid steel topped tool rest.

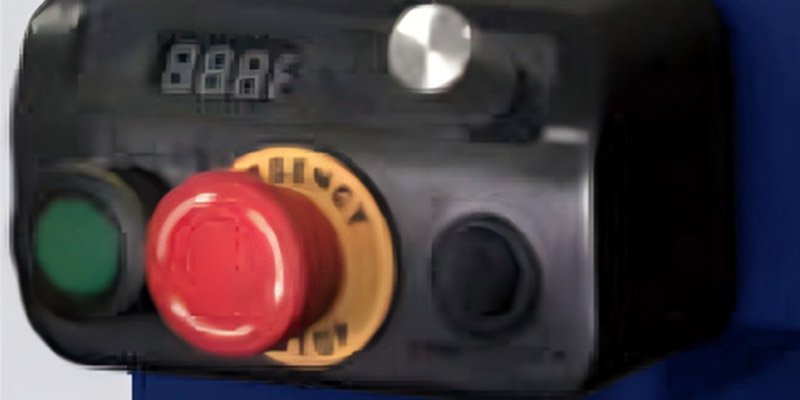

Premium magnetised control box with digital speed display.Emergency stop and reverse switches.
Voltage/Frequency | DC 230V/50Hz DC 120V/60Hz |
Swing Over Bed Diameter | 305mm |
Distance Between Centres | 419mm |
Spindle Speeds | 250-850rpm 430-1,450 rpm 950-3,200 rpm |
Spindle and Sleeve Taper | MT2 |
Spindle Thread ·Standard |
M33x3.5 M30x3.5 1"×8 |
Sleeve Adjustment | 90mm |
Indexing Position | 24 |
Tool Rest ·Standard |
6" 4" 8" |
Face Plate ·Standard |
3" 6" |
Spindle Rotation | Forward (C-Clockwise)& Reverse (Clockwise) |
Motor Power Output | 1*220-240V 4/3HP S1 |
Net/Gross Weight | 43/46kgs |
Package Size | 880×460×260mm |
Container Load Q'ty | 210pcs/20’ |
