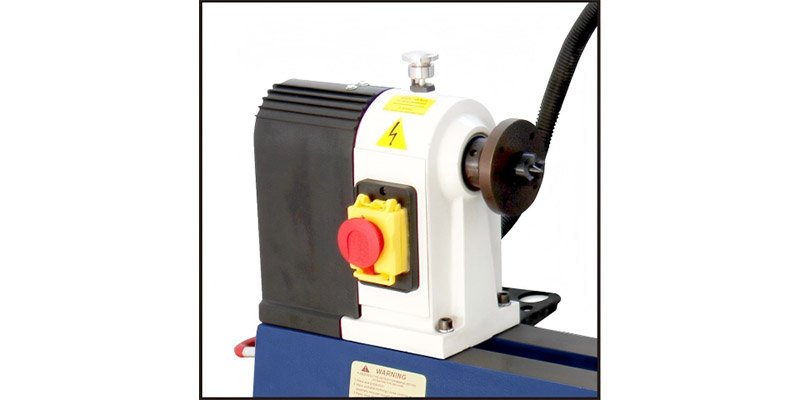

Easy speed change,solid headstock and lathe bed construction,Extra 550mm optional bed extension which enables total working length to 1,000mm.
1.The lathe is constructed from cast iron and includes a powerful 600W universal motor that provides full torque at all speeds.The 5-belt positions with 50HZ at: 650,980,1400,2000,2800 RPM.
2.With two handle on the cast iron bed for easier moving.Rear tool holder fitting as standard.
Voltage/Frequency | AC 230V/50Hz AC 120V/60Hz |
Swing Over Bed Diameter | 305mm |
Distance Between Centres | 450mm |
Spindle Speeds | 650rpm 980rpm 1400rpm 2000rpm 2800rpm |
Spindle and Sleeve Taper | MT2 |
Spindle Thread ·Standard |
M33x3.5 M30x3.5 1"×8 |
Sleeve Adjustment | 50mm |
Indexing Position | 24 |
Tool Rest ·Standard |
6" 12"
|
Face Plate | 3" |
Spindle Rotation | Forward (C-Clockwise) |
Motor Power Output/Input | 400/600W |
Net/Gross Weight | 40/42kgs |
Package Size | 910×330×490mm |
Container Load Q'ty | 200pcs |
