PRODUCT DESCRIPTION:

PS400C is a heavy duty, professional quality panel saw ideal for any furniture manufacturing businesses.The perfect solution for easy and accurate cutting of panels up to 3200mm long with electric Rise/Fall/Till. PLC controlled Rip Fence,via fast and accurate Ball&Screw movement and three Cross Cut Stops with Digital readouts.

PRODUCT DETAILS
01

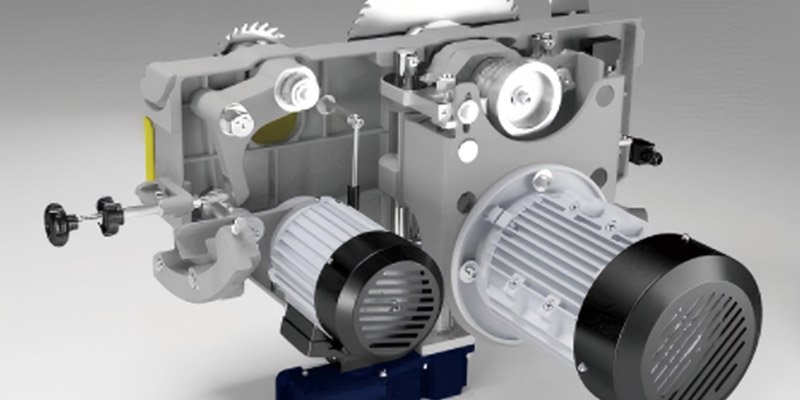

One-piece cast iron movement with 30mmdiameter linear guides for increased load bearing,impact resistance,maintenance free and longer life.

02

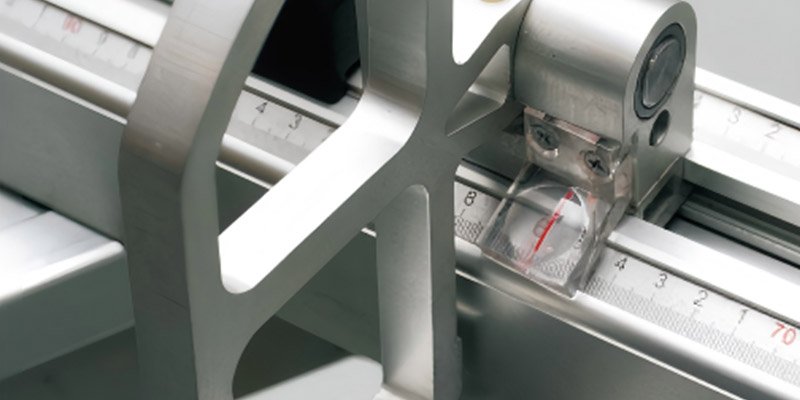

Large section profile cross cutting fence with reversible fence stops.

03

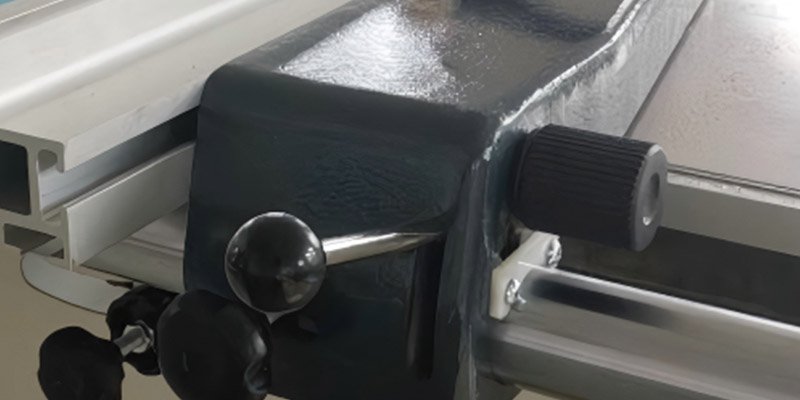

Reversible sawing fence that folds up the workbench when hands need to be freed to saw large boards.

04

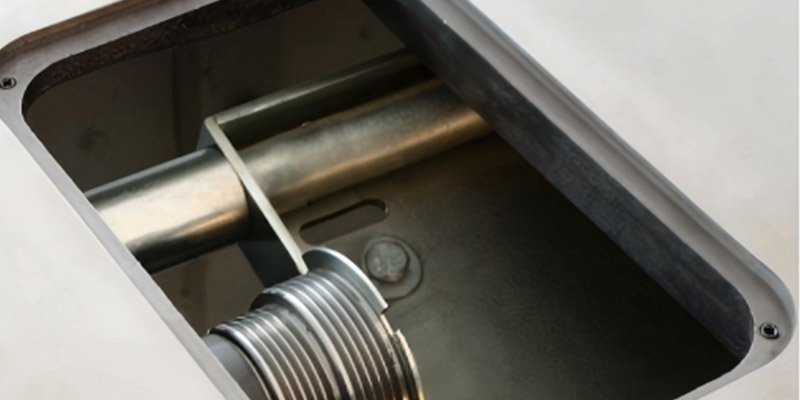

Three-speed design,suitable for different material cuts,with quick-rise handle for fast adjustment.

SPECIFICATIONS

Max Blade Diameter

Φ400/30 mm

Main Blade Speed

3000/4000/5000rpm

Scoring Blade Diameter

Φ120/20mm

Scoring Blade Speed

8000rpm

Blade Tilt

0-45°

Max Depth of Cut @90°

85mm

Max Depth of Cut @45°

125mm

Max Rip Capacity

1250mm

Sliding Beam Size

·Standard



3200x418mm

Sliding Beam Cutting Capacity

·Standard



3200mm

Table Size

1020(690+720)mm

Dust Extraction Outlet

Φ100mm

Motor Power Output

5.5kW/S1

Volt

380-415V/50Hz

Net/Gross Weight

1040/1130kgs

Package Size

·Mainframe stack height

·Sliding table



2300×2300×2200mm

3600×550×280 mm

Container Load Q'ty

10pcs/40’
