The cast iron saw unit provides extra support and stability for reduced vibration.

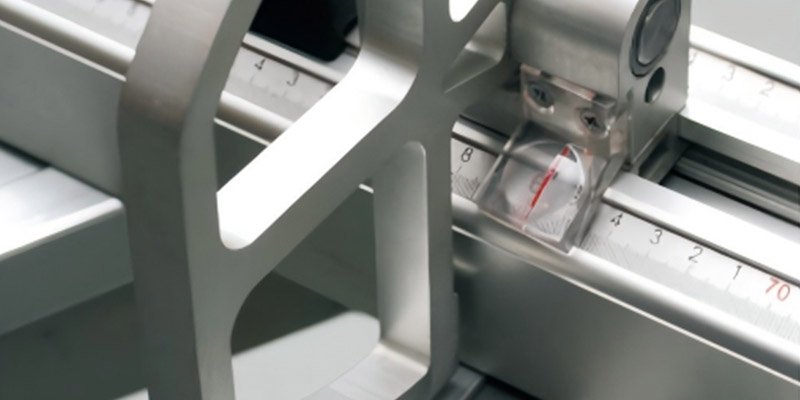

Large section profile cross cutting fence with reversible fence stops.

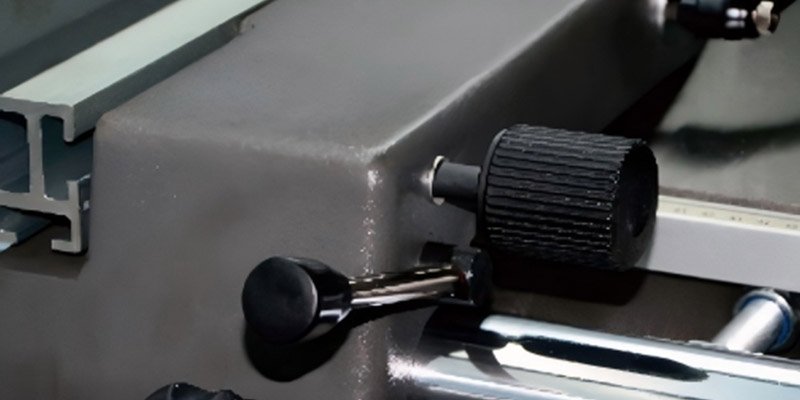

Solid cast iron rip fence with aluminium profile mounted to 50mm bar,for accurate reliable ripping.
Ball bearing sliding along tempered and ground prismatic guides guarantees smooth and precision sliding cutting.
Max Blade Diameter | Φ315/30 mm |
Main Blade Speed | 4500rpm |
Scoring Blade Diameter | 120/20mm |
Scoring Blade Speed | 8000rpm |
Blade Tilt | 0-45° |
Max Depth of Cut @90° | 95mm |
Max Depth of Cut @45° | 67mm |
Max Rip Capacity | 1250mm |
Sliding Table Size | 1200×312mm |
Sliding Table Cutting Capacity | 1250mm |
Table Size | 800(530+820)mm |
Dust Extraction Outlet | Φ100/Φ80mm |
Motor Power Output | 2.5kW/1PH |
Volt | 220-240V/50Hz 380-415V/50Hz |
Net/Gross Weight | 400/460kgs |
Package Size | 1300×1000×1100mm |
Container Load Q'ty | 40pcs/40’ |
