The TS250RS is equipped with a high precision ball sliding table that allows the saw to be controlled away from the cutting area for the operator's safety.The fully CNC machined cast iron internal pivot mechanism with ball screw mechanism for height and angle adjustment is highly accurate,knowing that ball screws are high precision parts used for precision transmission on metalworking lathes;ensuring high accuracy and smooth transmission;the ball slide mechanism saves effort and has a high degree of repeatability,making it your ideal woodworking room table saw.
The cast iron saw unit provides extra support and stability for reduced vibration.

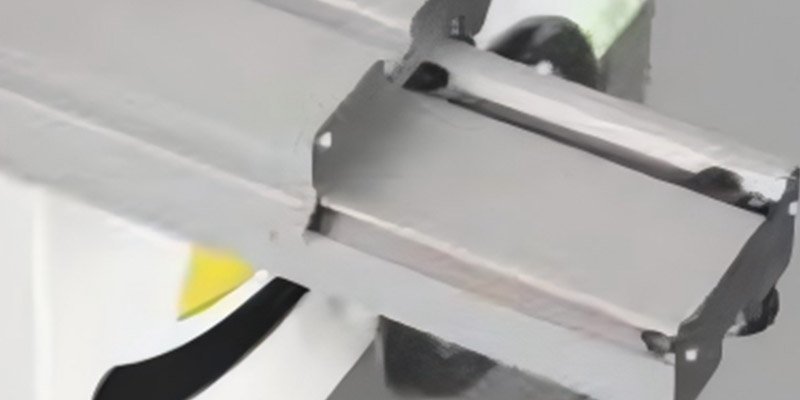

Large section profile cross cutting fence with reversible fence stops.
Reversible saw fence for folding away table when it needs to be free for sawing large panels.

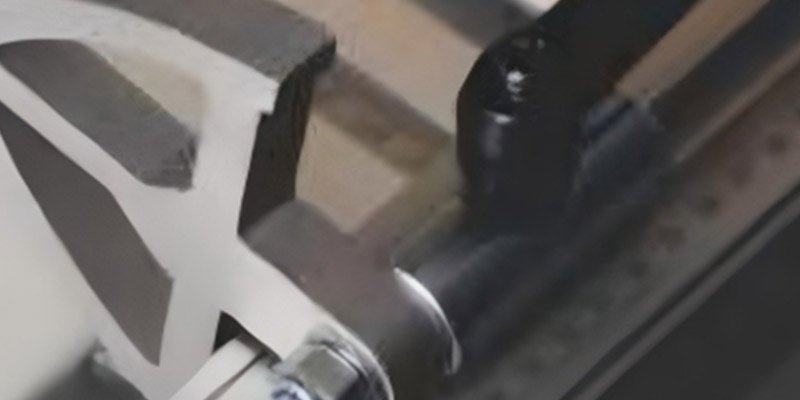

Ball bearing sliding along tempered and ground prismatic guides guarantees smooth and precision sliding cutting.
Max Blade Diameter | Φ254/30 mm |
Main Blade Speed | 4000rpm |
Blade Tilt | 0-45° |
Max Depth of Cut @90° | 80mm |
Max Depth of Cut @45° | 54mm |
Max Rip Capacity | 600mm |
Sliding Table Size | 1320×238mm |
Sliding Table Cutting Capacity | 600mm |
Table Size | 800(350+270)mm |
Dust Extraction Outlet | Φ100/Φ30mm |
Motor Power Output | 1.5kw/S1 |
Volt | 220-240V/50/60Hz 380-415V/50Hz |
Net/Gross Weight | 141/160kgs |
Package Size | 860x625x570mm 1380x380x130mm 810×305x55mm 890×515x150mm |
Container Load Q'ty | 60pcs/20’ |
