The PS 315B panel saw is the starting point of the Woodfast industrial sliding table saws.
The new manufacturing techniques,continuous research and development coupled with advanced design solutions are all facors that ensure that the PS315B can offer outstanding accuracy,quality and value.

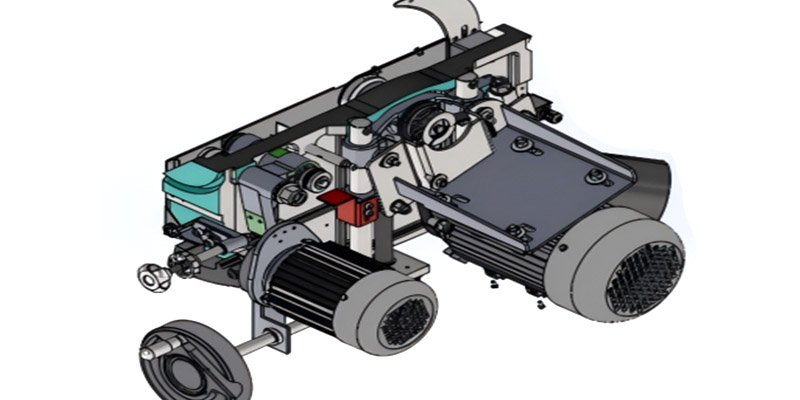

The cast iron saw unit provides extra support and stability for reduced vibration.

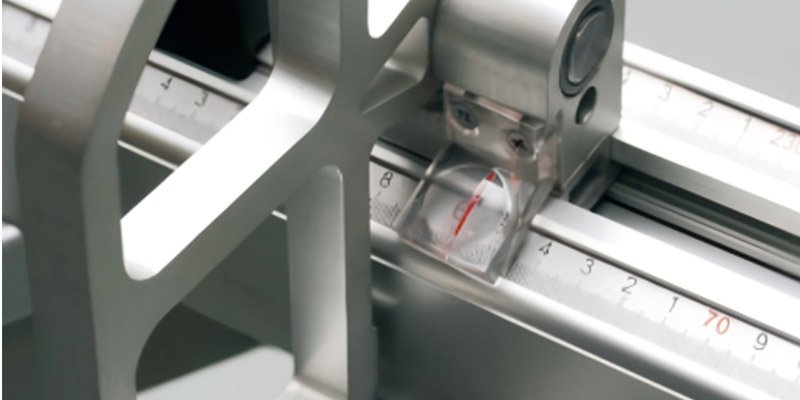

Large section profile cross cutting fence with reversible fence stops.

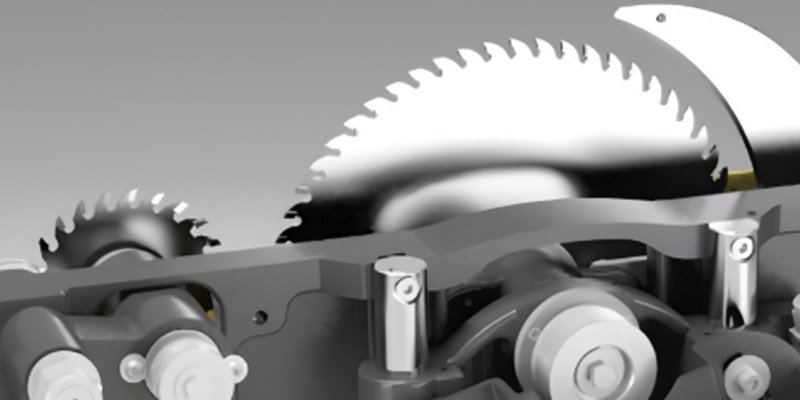

The saw unit is mounted on duel vertical shafts for smooth and accurate movement.

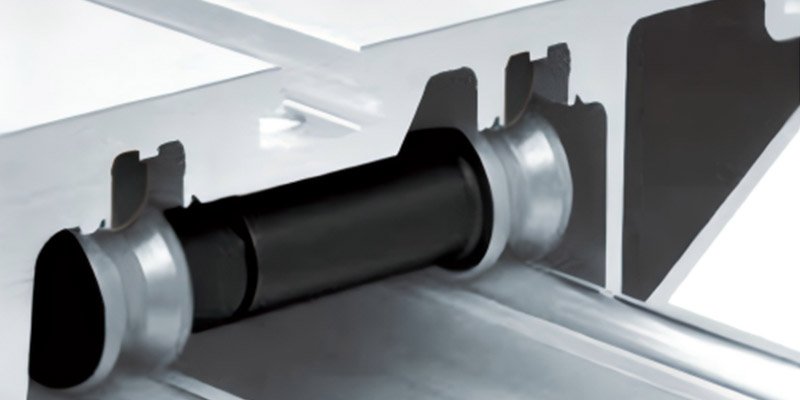

Rolling along tempered and ground prismatic guides guarantees a smooth and precise sliding table.
Max Blade Diameter | Φ315/30 mm |
Main Blade Speed | 4000rpm |
Scoring Blade Diameter | 120/20mm |
Scoring Blade Speed | 8000rpm |
Blade Tilt | 0-45° |
Max Depth of Cut @90° | 95mm |
Max Depth of Cut @45° | 67mm |
Max Rip Capacity | 1250mm |
Sliding Table Size | 3200×375mm |
Sliding Table Cutting Capacity | 3200mm |
Table Size | 800(530+820)mm |
Dust Extraction Outlet | Φ120/Φ80mm |
Motor Power Output | 2.5kW/1PH 4kW/3PH |
Volt | 220-240V/50Hz 380-415V/50Hz |
Net/Gross Weight | 560/680kgs |
Package Size ·Mainframe stack height ·Sliding table ·Mainframe wooden box |
2300×1080×2300mm 3560×480×210 mm 2300×1080×1150mm |
Container Load Q'ty | 18pcs/40’ |
