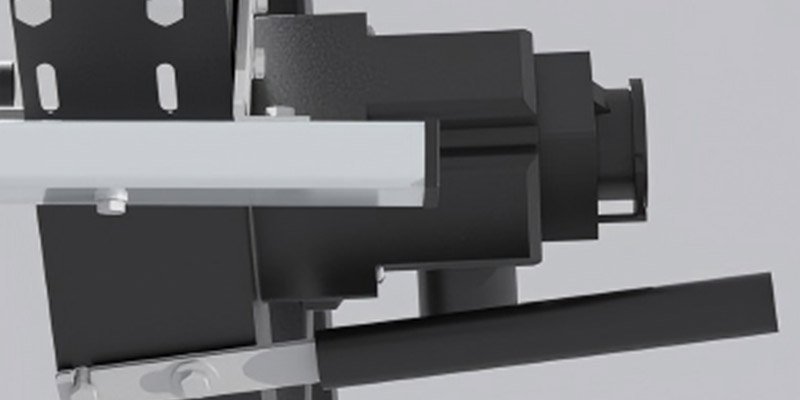

The kit with steel telescopic handle is mounted on folding legs and can be folded without tools for easy assembly,storage or transport.Roller kit for easy movement of the machine.High powered 2200W induction motor,tough and silent.100 mm diameter main dust outlet.30 mm suction port on the blade guard,connected to the main dust outlet via a hose (included).

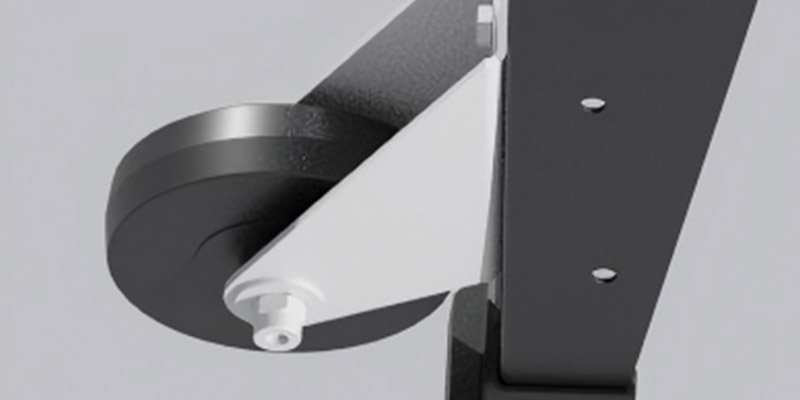

Rollers on the legs for easy movement.

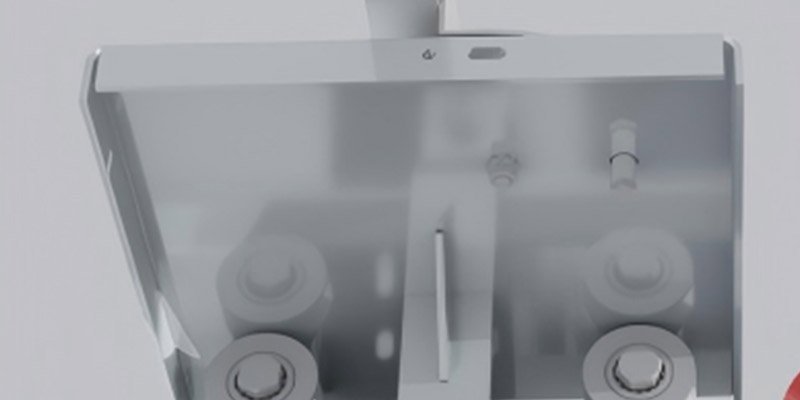

Cross-cutting slide mounted on rails with 3 rollers.

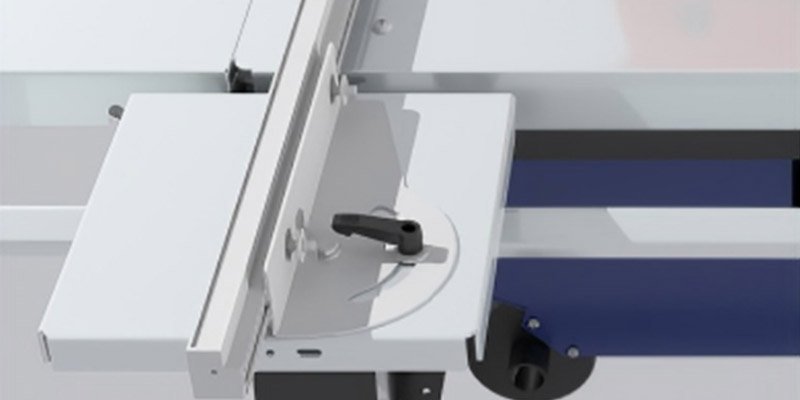

45°adjustable angle scale mounted on a sliding table with length stop for repeat cuts.
Kit with telescopic handle for easy movement of the machine.

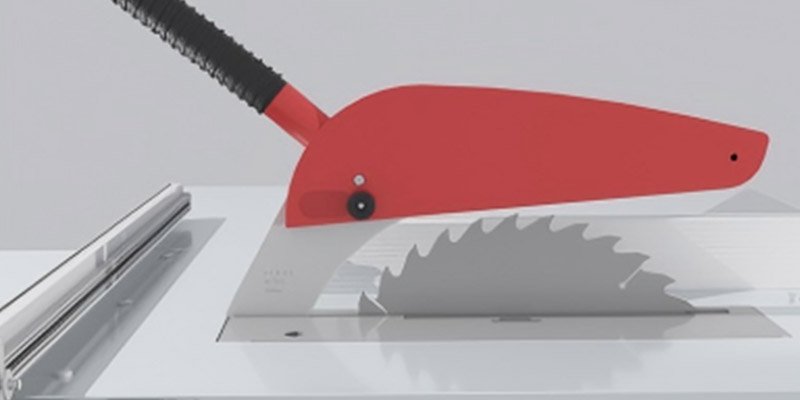

Saw blade guard connected to the spacer by a hose.

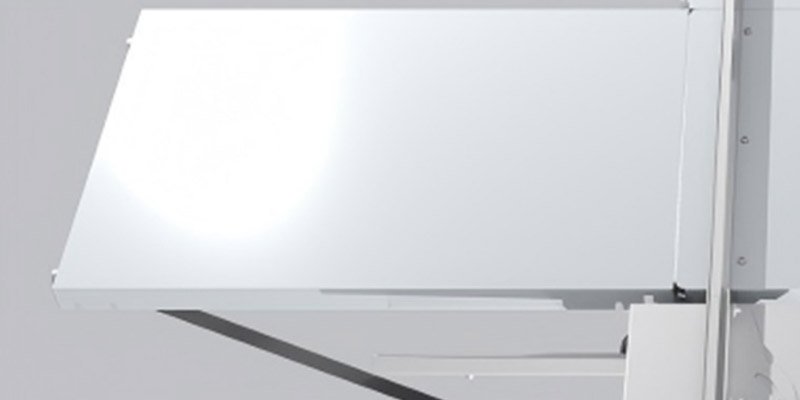

550×800mm galvanised steel sub-table with 2 stands.
Max Blade Diameter | Φ315/30 mm |
Main Blade Speed | 2950rpm |
Blade Tilt | 0-45° |
Max Depth of Cut | 90mm |
Max Rip Capacity | 1250mm |
Sliding Table Size | 230x230mm |
Table Size | 550x800mm |
Sub-table size | 550x800mm |
Motor Power Output | 1.6kW 2.0kW |
Volt | 230V/50Hz 400V/50Hz |
Net/Gross Weight | 58/62kgs 7.5/8.5kgs |
Package Size | 935x650x475mm 245x145x1295mm |
