Sharing the same essential design and feature of BS500,the BS500 improved in capacities and motor power.Perfect for the smaller shop that has serious ripping requirement.Standard features such as Bearing blade guides on the top/bottom.Quick blade tension with indicator.Easy drit fence and gear driving tilting table and so much more.It puts industrial style features and very capacities within reach of the discerning woodworker who needs rock solid performance and reliability.

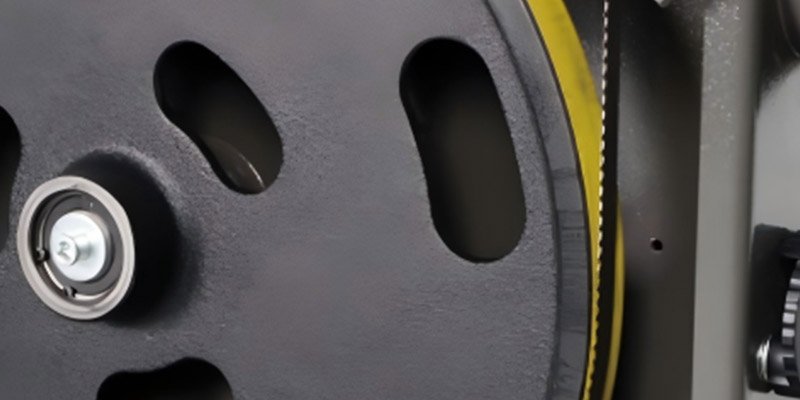

Solid cast iron bandwheel and reliable dual support tension system.
Blade quick release with hefty flywheel spring to help the saw withstand greater forces required for tensioning wide blades.
Bearing blade guides simplify adjustments.
Oversize casting trunnions that lend solid foundation below and driven by gear for easy tilting.
Voltage/Frequency | 400V/50Hz |
Motor output power | 4HP |
Blade Length | 3962mm |
Blade Width | 6-30mm |
Blade speed | 1500m/min |
Max Depth of Cut | 305mm |
Max Width of Cut | 480mm |
Table Size | 633×485mm |
Table Tilt | 0-45° |
Bandwheel Dia. | 497mm |
Clean Dia. | 100mm |
Package Size ·Carton box | 983×660×2042mm |
Net/Gross Weight | 229/280kgs |
Container Load Q'ty ·Carton box load | 19pcs/20' |
