The BS400A bandsaw offers high quality,industrial features and large capacities to the mid range bandsaw market.

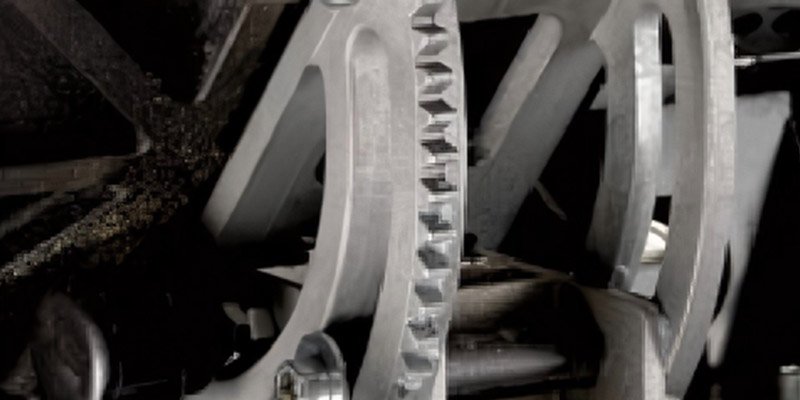

This machine brings affordable solid performance and reliability within reach of the discerning woodworker.Like all bandsaws in the range,a solid cast iron table provides unrivalled stability and solidity.An industrial style cast trunnion supports the table and allows it to be tilted one-handed on a rack and pinion.Dynamically balanced cast iron bandwheels ensure superior strength and reduced vibration-a feature not usually found on other machines at this level.The 2hp motor and 305mm depth of cut mean this machine can cope easily with large timbers yet is also equally capable of fine,precise cuts and veneers.
Industrial Style Fence This high quality fence features a heavy extrusion mounted on a cast iron base,which moves along a solid steel bar.
Large 535×480 mm Cast Iron Table Provides a strong and steady work area to support large wor pieces.Finely ground finish enables effortless movement of the timber.

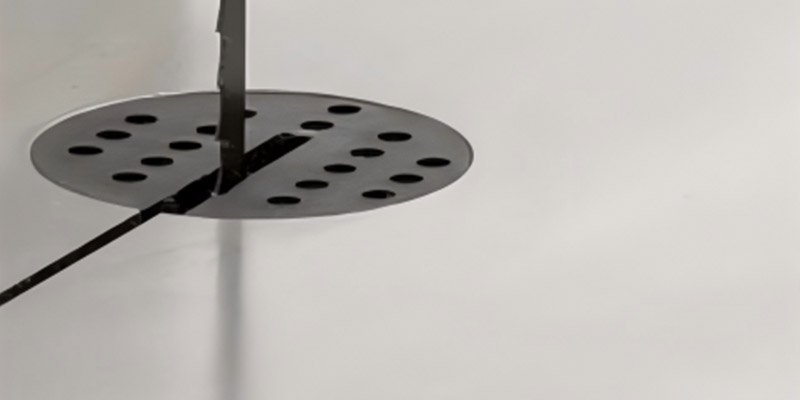

Accurate and Easy to Use Blade Guides.
Trunnion Solid double trunnion table mount for rigid table support featuring one handed rack and pinion table tilt for ease of use and accuracy.
Voltage/Frequency | 230V/50Hz 400V/50Hz |
Motor output power | 2HP |
Blade Length | 3378mm |
Blade Width | 6-25mm |
Blade speed | 480/820m/min |
Max Depth of Cut | 305mm |
Max Width of Cut | 416mm |
Table Size | 535×485mm |
Table Tilt | 0-45° |
Bandwheel Dia. | 422mm |
Clean Dia. | 100mm |
Package Size ·Carton box | 713×512×1920mm |
Net/Gross Weight | 140/151kgs |
Container Load Q'ty ·Carton box load | 33pcs/20' |
