The BS470A bandsaw offers high quality,industrial features and large capacities to the mid range bandsaw market.Mechanically welded frame,rigid and strong.Cast iron sawing table with oversize casting trunnions and driven by gear for easy tilting.Adjustment of the blade tension with a handwheel,tension graduation is readable through a sighting window on the upper door.Quick release blade tension lever.2 cutting speeds by changing the position of the belt,depending on the material to be cut.
Rubber-coated cast iron wheels ensure a quiet operation.
Windows to check the tension of the saw band.

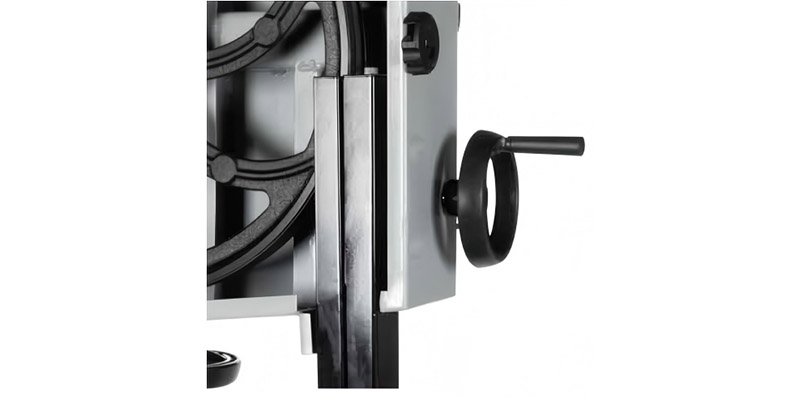

Cutting height-adjustable via hand wheel and gear rack.
2 dust collector connections (Φ100mm).
Voltage/Frequency | 230V/50Hz 400V/50Hz |
Motor output power | 2HP |
Blade Length | 3451mm |
Blade Width | 6-35mm |
Blade speed | 380/820m/min |
Max Depth of Cut | 390mm |
Max Width of Cut | 465mm |
Table Size | 535×485mm |
Table Tilt | 0-45° |
Bandwheel Dia. | 475mm |
Clean Dia. | 100mm |
Package Size ·Carton box | 820×520×1990mm |
Net/Gross Weight | 157/170kgs |
Container Load Q'ty ·Carton box load | 29pcs/20' |
