The BS300B is a great all rounder perfectly specified for the medium sized workshop where a range of duties will be required.Featuring a solid fence,vital for accurate ripping,which has a heavy extrusion mounted on a cast iron base and fixed to a solid steel bar for maximum rigidity and support.The machine also features a solid double trunnion fence mount to provide rigid table support and one-handed table tilt on a smooth rack and pinion.Adding to the structural integrity of the BS300E are the cast iron bandwheels which are fitted with precision ground rubber tyres to provide a flywheel effect for smooth cutting.
Industrial Style Fence This high quality fence features a heavy extrusion mounted on a cast iron base,which moves along a solid steel bar.

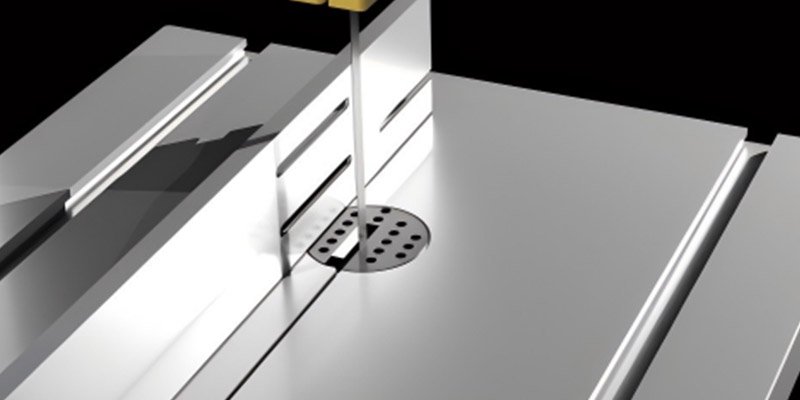

Large Cast Iron Table Provides a strong and steady work area to support large workpieces.
Cast Iron Band Wheels Are dynamically balanced and provide a flywheel effect for improved cutting performance.
Trunnion Solid double trunnion table mount for rigid table support featuring one handed rack and pinion table tilt for ease of use and accuracy.
Voltage/Frequency | 230V/50Hz 120V/60Hz |
Motor output power | 1 HP |
Blade Length | 2370mm |
Blade Width | 6-19mm |
Blade speed | 380/820m/min |
Max Depth of Cut | 190mm |
Max Width of Cut | 305mm |
Table Size | 480×400mm |
Table Tilt | 0-45° |
Bandwheel Dia. | 312mm |
Clean Dia. | 100mm |
Package Size ·Carton box | 1125×380x540mm |
Net/Gross Weight | 89/93kgs |
Container Load Q'ty ·Carton box load | 108pcs/20' |
